LOWER YOUR ENERGY BILLS WITH STEFFES ELECTRIC THERMAL STORAGE HEAT
From single family homes to large commercial buildings, Steffes Electric Thermal Storage systems provide a clean, consistent source of heat while saving energy and reducing the high costs associated with inefficient traditional heating systems.
Beltrami Electric Cooperative is an Authorized Steffes Dealer. Beltrami Electric also has REBATES AVAILABLE toward the purchase of NEW Steffes electric thermal storage heating equipment connected to the load management program!
For pricing and more information, contact our Energy Services Department today at (218) 444-2540 or (800) 955-6083.
STEFFES ETS ROOM UNITS
STAY COZY WITHOUT THE COST

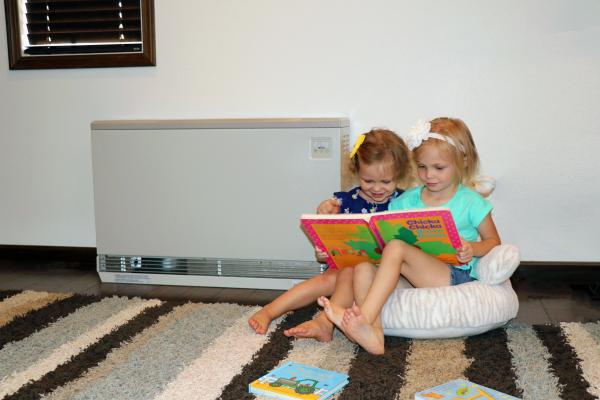

Steffes Electric Thermal Storage (ETS) room heating units provide clean, consistent heat for rooms of nearly any size.
The 2100 Series room units are ideal for retrofitting electric baseboard-heated rooms, supplementing an existing heating system or heating a new addition to your home or business. Unlike traditional electric heaters, Steffes ETS room heating units convert electricity to heat during off-peak hours, when the demand and price of electricity is lower.
Specially-designed ceramic bricks within the units store vast amounts of heat for extended periods of time so you can save money without having to shiver. With the built-in room thermostat, you can adjust the heater’s temperature settings for clean, consistent heat that meets your comfort requirements.
Room Unit Features and Specifications
100 percent efficient
No maintenance required
Built-in digital thermostat
Variable speed supply blower
Immediate heat response
Super insulated to minimize static discharge and surface temperature
Easy to read digital display
Five-year limited parts warranty
| MODEL | 2102 | 2103 | 2104 | 2105 | 2106 |
| Length- inches | 30 | 37 | 44 | 51 | 58 |
| Height- inches | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 |
| Depth- inches | |||||
| (w/o wall bracket) | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| (w/ wall bracket) | 12 | 12 | 12 | 12 | 12 |
| Number of Bricks | 16 | 24 | 32 | 40 | 48 |
| Installed Weight – lbs | 267 | 376 | 478 | 585 | 692 |
STEFFES COMFORT PLUS FURNACES
A FURNACE MADE WITH COMFORT

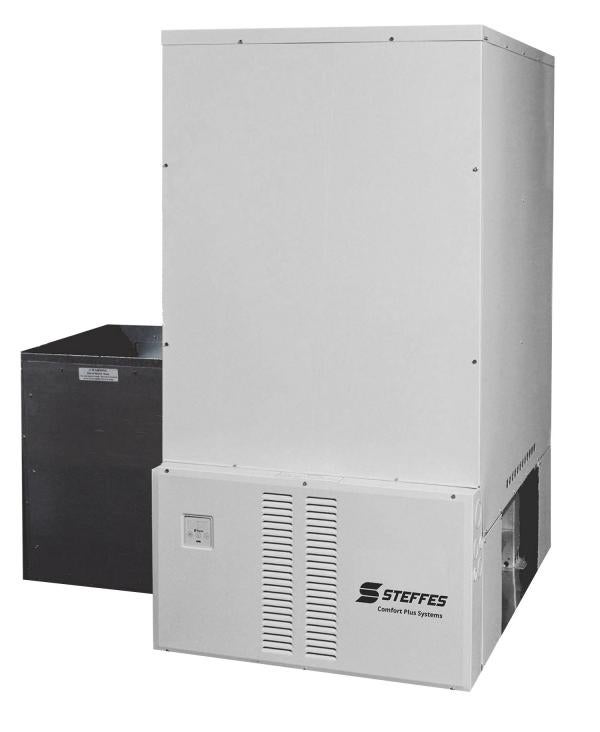

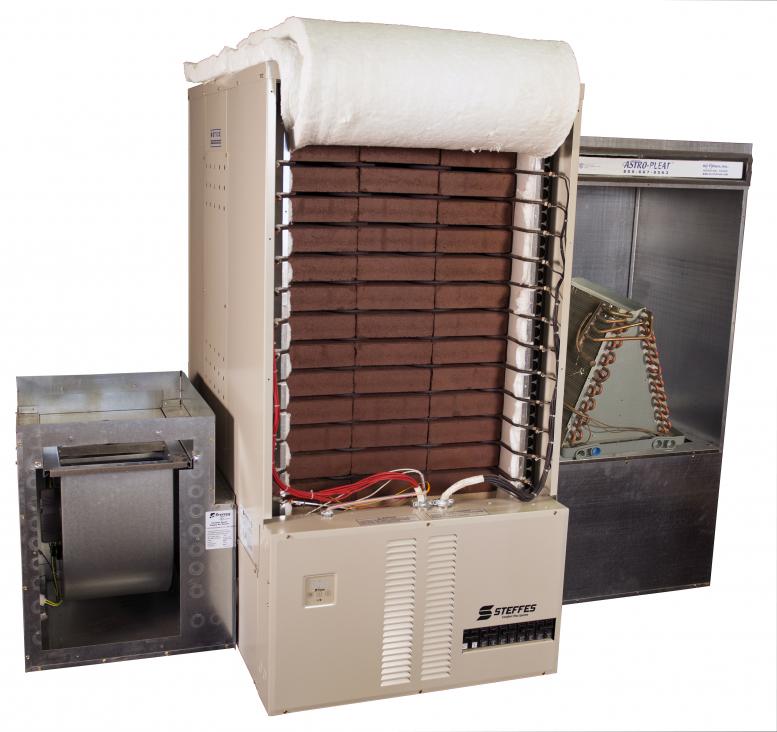

The Steffes Comfort Plus Forced Air Furnaces (4100 Series) are ducted heating systems designed to stand alone or work in conjunction with a heat pump for increased efficiency. The Electric Thermal Storage (ETS) technology allows the Comfort Plus Forced Air Furnace to convert electricity to heat during off-peak hours, when the demand for and price of electricity is low.
Specially-designed ceramic bricks within the units store vast amounts of heat for extended periods of time. With this stored off-peak heat, the Steffes Comfort Plus Forced Air Furnace can deliver clean, consistent comfort 24 hours a day. In addition, by only consuming electricity during off-peak hours, the Comfort Plus can save you up to 70 percent on your electric bill compared to traditional heating systems. All Steffes Comfort Plus Forced Air Furnaces are equipped with a variable speed blower to ensure consistent, even temperature output to meet your comfort requirements.
For even greater efficiency all Steffes Comfort Plus Forced Air Furnaces can be interfaced to a heat pump system.

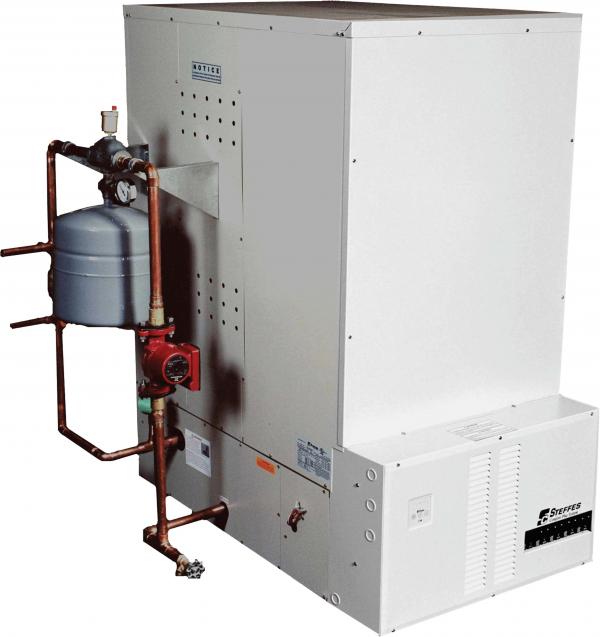

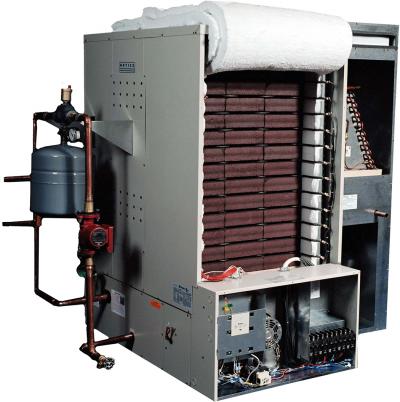

The Steffes Comfort Plus Hydronic Furnaces (5100 Series) blends hydronic heating with Electric Thermal Storage (ETS) technology. During off-peak hours, when electricity costs and energy usage rates are low, the Steffes Hydronic furnace converts electricity into heat and stores it in specially-designed ceramic bricks located inside the unit.
Through the use of a heat exchanger, this stored heat is transferred as needed from the storage media to a water or glyco solution, which is circulated to areas where the heat is needed. With its ETS technology, the Steffes Hydronic Furnace can substantially lower electricity costs while delivering the high-quality radiant heating associated with traditional hydronic systems. The Steffes Comfort Plus Hydronic Furnace is perfect for radiant floor systems, baseboard radiation or even forced-air systems.
And all Comfort Plus furnaces can be equipped with a heat pump system for even greater efficiency!
